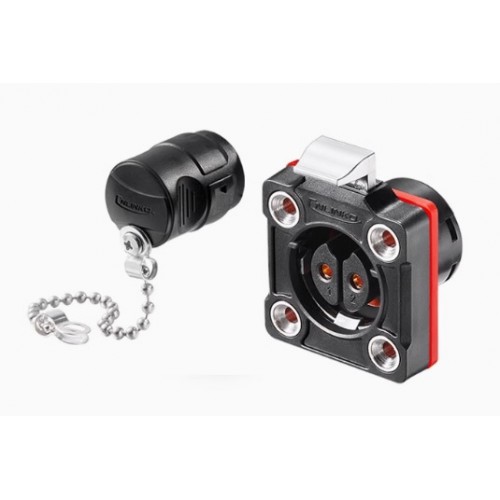

Sealed connectorCnlinko BD-20-J02SX-02-401 is an industrial panel socket 2 contacts, designed for reliable connection of electrical circuits. The connector has a rated current of 20A and voltage 500V. Cable diameter 2.7mm.
Mate to the panel socket - cable plug BD-20- C02PE-02-001
The connector is highly resistant to dust and moisture (IP67 protection), which makes it suitable for use in difficult conditions. Housing material It is durable, providing durability and protection from mechanical damage. The connector has a three-point-connection design, which allows easy and quick connection. The contacts are made of high-quality copper alloy.
BD-20 Connector Parameter Table
| Number of Contacts | 2 | 3 | 4 | 5 | 7 | 9 | 12 | 14 |
| Nominal Current, A | 20 | 10 | 5 | |||||
| Working Voltage, V | 500 | 500 | 250 | |||||
| Short-Term Withstand Voltage, V | 2000 | 1500 | ||||||
| Contact Resistance, mΩ | <1.0 | <3.0 | <5.0 | |||||
| Contact Diameter, mm | 2.7 | 2.7 | 2.7 | 1.8 | 1.8 | 1.0 | 1.0 | 1.0 |
| Operating Temperature | -40℃ ~ +80℃ | |||||||
| Vibration | Frequency: 5-200Hz, Amplitude - 5mm, Speed 10 m/s | |||||||
| Certifications | IEC61984 and UL1977/2238 | |||||||
| Flame Retardant Level | UL94-V0 | |||||||
| Protection Level | IP67 | |||||||
